Laser protected windows for laser welding equipment and laser cutting machine

Name: Laser protected windows for laser welding equipment and laser cutting machine
Brand: Wuhan Siwer Optics
Price: 2 USD

Buy cheap Laser protected windows for laser welding equipment and laser cutting machine product

Brand Name : Wuhan Siwer Optics

Model Number : Concave Aluminum Coating Mirror

Place of Origin : Wuhan,Hubei,China

MOQ : 5 pieces

Price : 2-200USD/piece

Payment Terms : T/T, Western Union

Supply Ability : 2000 pieces/month

Delivery Time : 1-3 weeks

Packaging Details : 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler

Material : Quartz/K9/JGS1/JGS2/Optical glass

Size tolerance : +/-0.1mm

Thickness tolerance : +/-0.1mm

Surface quality : 40/20

Surface accuracy : Lambda/4 in 25.4mm

Size range : 2-300mm

Output power : 1-15KW (customized)

Wavelength : 1064nm/1030nm/980nm/808nm/customize

Application : Co2 Laser Engraving/cutting Machines

Product name : Laser Protective windows or mirrors

Contact Now

fiber Laser optical Protective windows and Mirrors for Nd YAG laser machine

Optical Coating Laser protective windows and mirrors

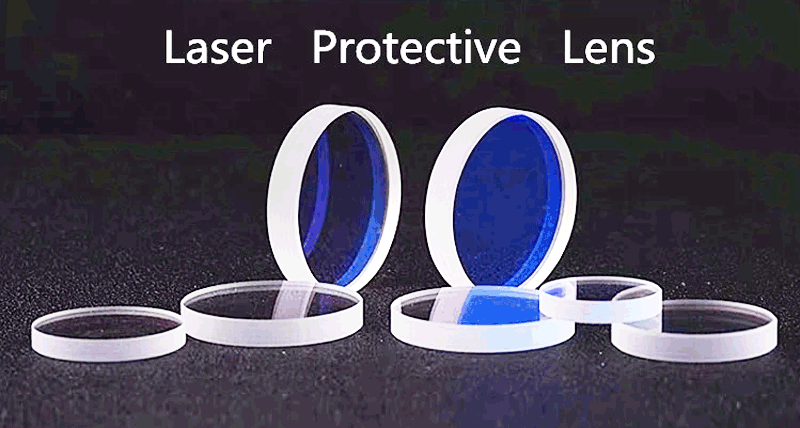

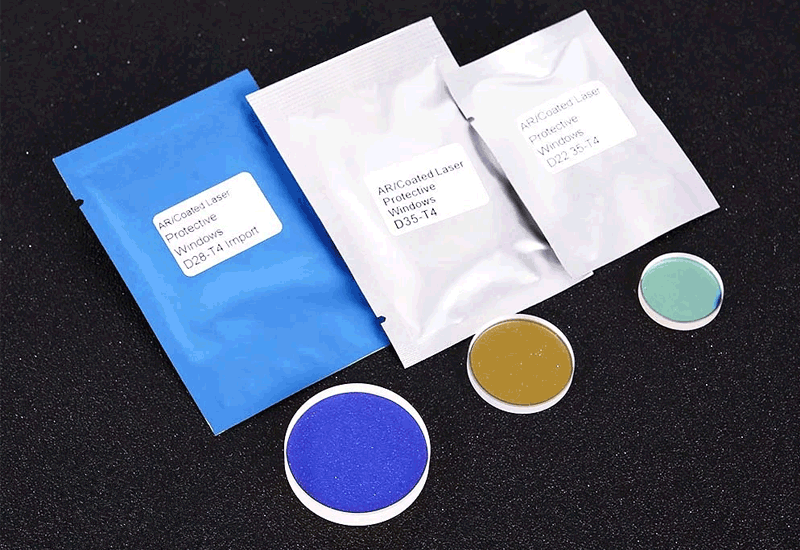

(Laser protective lens/Laser protective window/Laser protective glass)The main function of the laser protection lens is to prevent dust and splash damage to the focusing lens of laser welding equipment and laser cutting machine. Can protect the damage of the focus lens, due to the AR coating on the surface is designed according to the wavelength 1064nm of the laser machine, so the laser lens laser protective windows can extend the service life of the laser machine, reduces the use-cost .

Laser protected windows for laser welding equipment and laser cutting machine

Metallic Coated Mirror	N-BK7 ; UV Fused Silica ,B270 ,borosilicate glass
Material:	N-BK7 ; UV Fused Silica ,B270 ,borosilicate glass
Size:	upon your request
Tolerance:	+/-0.05mm to +/-0.1mm
Surface quality:	60/40
Clear Aperture:	>85%
Flatness:	lambda/4 per 25mm@633nm
Parallelism:	<3'
Bevel:	<0.25mm X 45°
Coating:	One surface(S1) :Polished and Metallic coating (Al, Ag, Au)
	The other surface :Fine ground
	Protected Aluminum :Ravg> 85%@400nm-800nm
	VIS Enhanced Aluminum :Ravg> 90% @450nm-750nm
	UV Enhanced Aluminum :Ravg > 80%@250nm-400nm
	Protected Silver :Ravg > 90% @400nm-20μm
	Protected Gold :Ravg > 94% @650nm-16μm

Laser protected windows for laser welding equipment and laser cutting machine

Production process

Laser protected windows for laser welding equipment and laser cutting machine

What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.

How to pay?

(1) T/T, PayPal, West Union,etc

(2) Bank Fee: West Union-USD30.00(≤USD3000.00),

T/T-USD20.00+, PayPal-5%. Please consult the local bank.

What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
