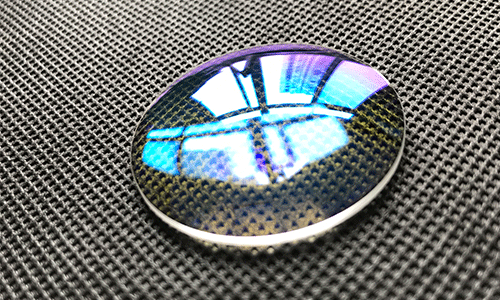

VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range

  • 1
  • 2
  • 3

Brand Name : Wuhan Siwer Optics

Model Number : Double Convex

Place of Origin : Wuhan,China

MOQ : 10 pieces

Price : 6-300USD/piece

Payment Terms : T/T, Western Union

Supply Ability : 5000 pieces/month

Delivery Time : 4-6 weeks

Packaging Details : 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler

Material : Optical glass,BK7,SF,etc.

Size tolerance : +/-0.1mm

Chamfer : 0.2-0.5mm

Surface quality : 40/20

Surface flatness : Lambda/4 in 25.4mm

Centration : 3 arc min

Standard coating : AR@400-700nm

Size range : 4-300mm

Usage : Optical system

Contact Now

Double convex lens

Double-Convex Lenses are used in image relay applications, or for imaging objects at close conjugates. Double-Convex Lenses have positive focal lengths, along with two convex surfaces with equal radii. Aberrations will increase as the conjugate ratios increase. DCX Lenses are used in a range of industries or applications.

VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range



Optical AR Coatings

a) Uncoated,The surface reflectivity of uncoated visible lenses(Refractive index＝1.5) is about 4%.

Click on the link to see how to calculate reflectivity

b) AR/AR@400-700nm,Tavg>99.4%

c) AR/AR@450-650nm,Tavg>99.6%

d) AR/AR@400-1000nm,Tavg>98.5%

e) We can also customize high damage threshold antireflective coatings

VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range







Production Line

VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range



Optical Properties of  Optical lens

Material Optical glass
AR Coating Range 400-700nm or customized
Reflectance over
AR Coating Range @ 0° AOI

Ravg<0.5%
Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Focal Length Tolerance ±2%
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)		 λ/2 at 633nm
Spherical Surface Powerc
(Convex Side)		 1.5λ at 633nm
Surface Irregularity
(Peak to Valley)		 λ/2 at 633nm
Centration <3 arcmin
Clear Aperture >Ø10.16 mm (Ø1/2" Lenses)
>Ø20.32 mm (Ø1" Lenses)
Design Wavelength 546nm
